MIL-DTL-16377/53D
NOTE:
1.
For Symbols 100.2, 100.2L, 101.2, 101.2L, 102.2, 102.2L, 108, and 108L lanterns, two non-rechargeable
batteries are used. For Symbols 100.3, 100.3L, 101.3, and 101.3L lanterns, one charger/control module and
one rechargeable battery are used.

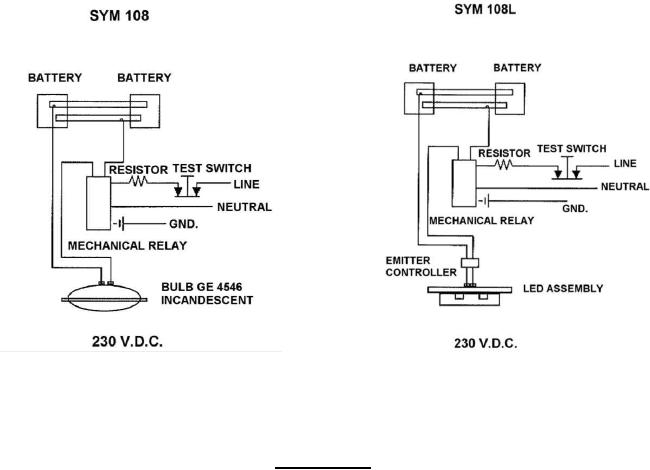

FIGURE 23. Wiring diagram - Continued.
22
