INCH-POUND
MIL-DTL-16377/17B(SH)
30 June 2014
SUPERSEDING
MIL-F-16377/17A(SH)
24 December 1981
DETAIL SPECIFICATION SHEET
FIXTURES, LIGHTING; FLUORESCENT AND SSL EQUIVALENT, DETAIL LIGHTING FOR BERTHS,
8 WATTS, 120 VOLTS, 60 HERTZ, SYMBOLS 229.1, 231.1, 232.1, 229.1SSL, 231.1SSL, AND 232.1SSL
This specification is approved for use by the Naval Sea Systems Command, Department of the Navy, and is
available for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-16377.
All dimensions are in inches. For tolerances other than specified herein, see 3.5.2 of MIL-DTL-16377.
Symbol No. 229.1 for Rail Mounting
Symbol No. 232.1 for Bulkhead or Bar Mounting
Symbol No. 231.1 for Spring Type Berths
Symbol No. 231.1 for Pan Type Berths

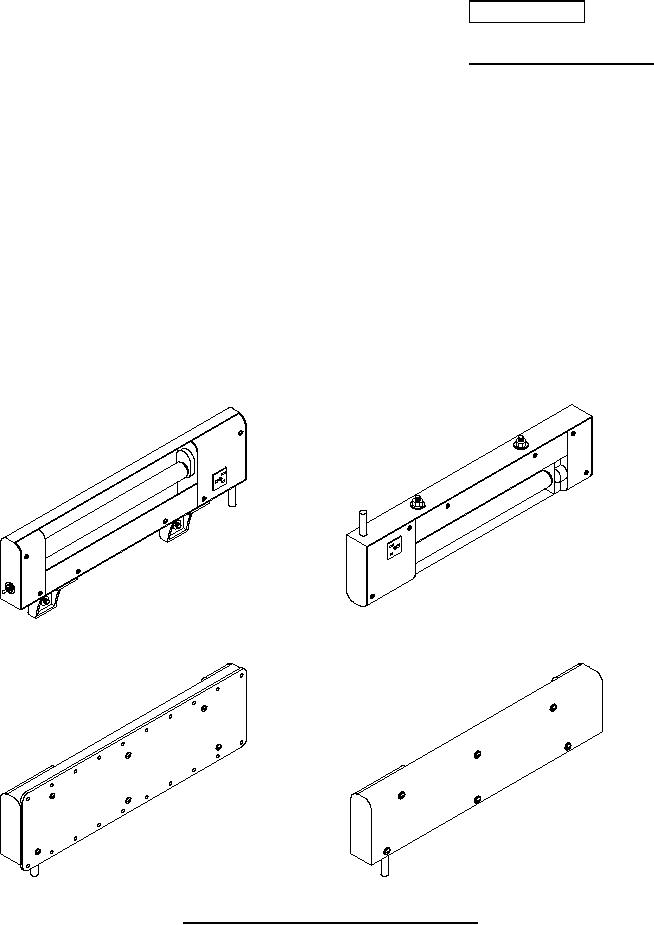

FIGURE 1. Typical view of symbols 229.1, 231.1, and 232.1.
