MIL-DTL-5003 Floodlight Set, Electric, Tripod-Mounted, Four 150-Watt FloodlightsThis specification covers a tripod-mounted electric floodlight set designed for use in areas where explosion proof type illumination equipment is not required \(see 6.1\).

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22


MIL-DTL-5003E
NOTES:
1. Dimensions are in inches unless otherwise specified.
2. Tolerances: as noted.
3. Connector box with six electrical weatherproof connectors and two weatherproof switches.

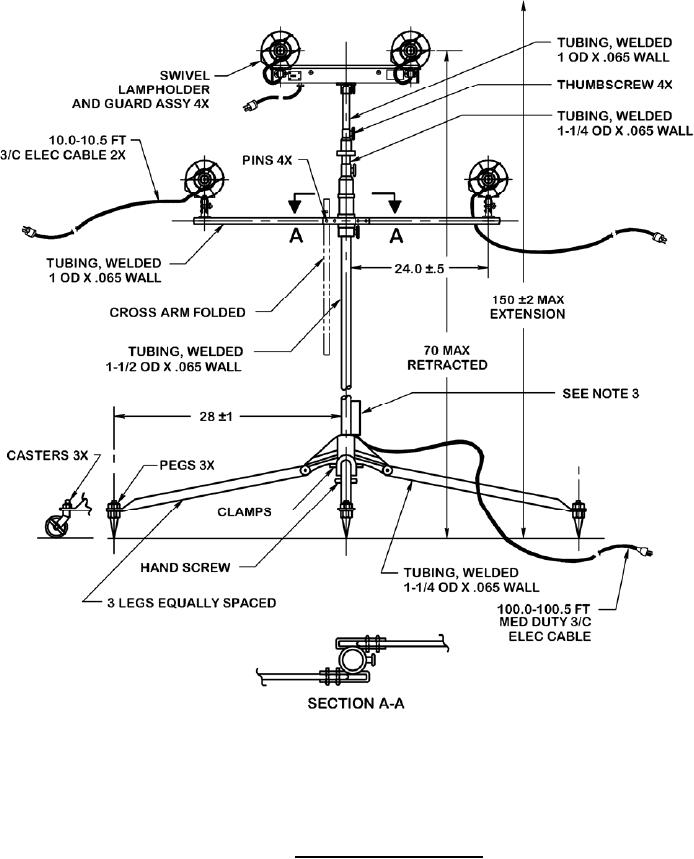

FIGURE 2. Floodlight lamp assembly.
