MIL-DTL-52543E
NOTES:
1. All dimensions are in inches.
2. Unless otherwise specified, tolerances are: angles ±1°, decimals ±.031.
3. Color filter domes, opaque dome, and clear dome have same dimensions.

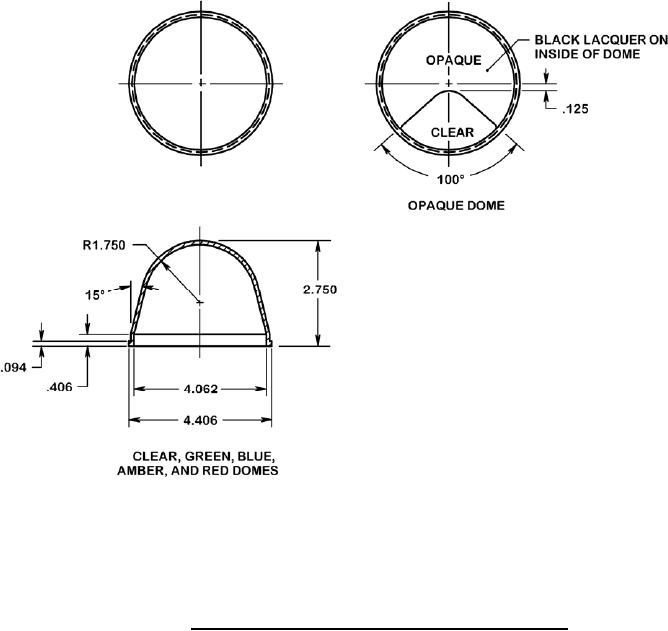

FIGURE 4. Filter domes, molded, large, clear, opaque and color.
18
