MIL-DTL-16377/53D

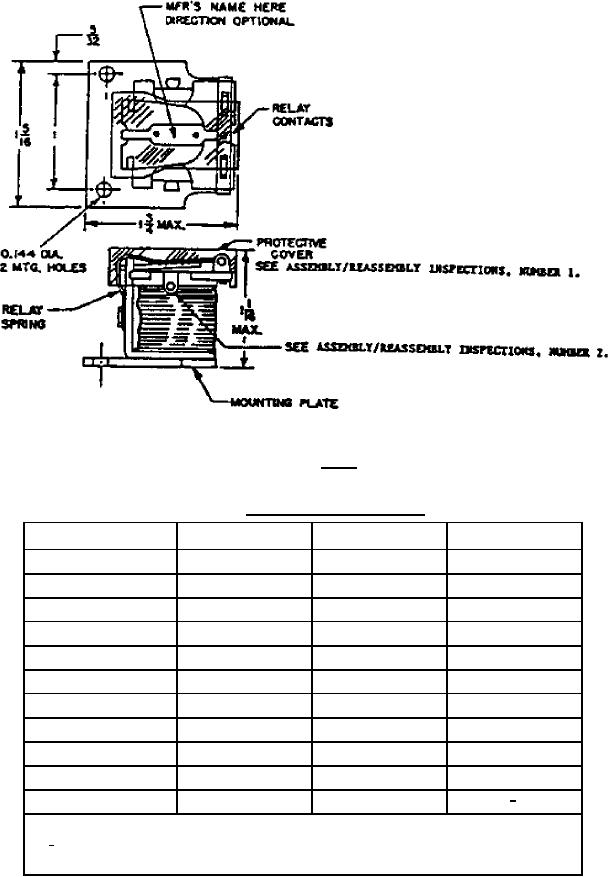

FIGURE 7. Relay.
TABLE I. Relay contact and coil ratings.
Characteristic
115 VAC
115 VDC
230 VDC
Frequency
60 Hz
---
---
Duty
Continuous
Continuous
Continuous
Operating voltage
125 max.
125 max.
250 max.
Coil rating
115 volts
115 volts
230 volts
Pull-in voltage
70-30 min.
70-30 min.
140-60 min.
Contact rating
2 amps, 6 volts
2 amps, 6 volts
2 amps, 6 volts
Service life
100,000 cycles
100,000 cycles
100,000 cycles
Contact resistance
0.1 ohm max.
0.1 ohm max.
0.1 ohm max.
Insulation resistance
100 megohms min.
100 megohms min.
100 megohms min.
Dielectric strength
1,000 V rms
1,000 V rms
1,000 V rms
1/
Coil resistance
3,000 ohms
12,000 ohms
NOTE:
1/
For 230 VDC operation, the 115-VDC relay with 12,000 ohm, 2-watt resistor in
series with coil may be used.
